Liquid painting line

By Customizing a Liquid Painting Line, Find The Liquid Painting Line That Suits Your Product

We offer custom Liquid Painting Lines tailored to our customers' specific needs and production requirements. This customized painting line can meet the unique requirements of your industry and products, ensuring optimal production efficiency, coating quality, and cost-effectiveness.

ZhYao Liquid Painting Line Features

     ● Spray Effect: Fast spraying speed, uniform coating, high efficiency, low energy consumption, and increased production output.

     ● Fully Automatic Conveyance: Developed auxiliary automatic shifting device for loading and unloading to accommodate differences between long and short materials, with fully automatic process control.

     ● Quick Color Change System: Customizable quick color change system according to customer requirements, significantly reducing gun cleaning time during color changes and increasing equipment utilization.

     ● Retractable Paint Booth: ZhYao retractable paint booths are suitable for painting large, medium, and small workpieces. They can be adjusted according to production output, featuring compact equipment structure and easy operation.

     ● Spray Pre-treatment: Utilizes spray pre-treatment, effectively reducing the length of the production line and thus saving space utilization.

     ● Independent Spray Gun Control: Allows for free setting of workpiece rotation, independent control of spray guns, and adjustment of oil mist size, height, and angle, facilitating cleaning, maintenance, and upkeep.

Components Of Wet Painting Line

     ● Preparation Area: This area is where the parts or substrates to be painted are prepared before entering the painting process. It may include processes such as cleaning, degreasing, sanding, and masking to ensure the surface is properly prepped for painting.

     ● Paint Booth: The paint booth is a controlled environment where the actual painting process takes place. It is designed to contain overspray and provide proper ventilation to ensure a clean and safe working environment.

     ● Paint Application Equipment: This includes various tools and equipment used to apply the paint to the parts or substrates. Common paint application methods in wet painting lines include spray guns, airless sprayers, and electrostatic sprayers.

     ● Paint Supply System: The paint supply system consists of paint reservoirs, pumps, hoses, and regulators that deliver the paint to the paint application equipment. It ensures a steady and consistent flow of paint for optimal painting results.

     ● Drying/Curing Oven: After the paint is applied, the parts pass through a drying or curing oven to cure the paint and achieve proper adhesion and durability.

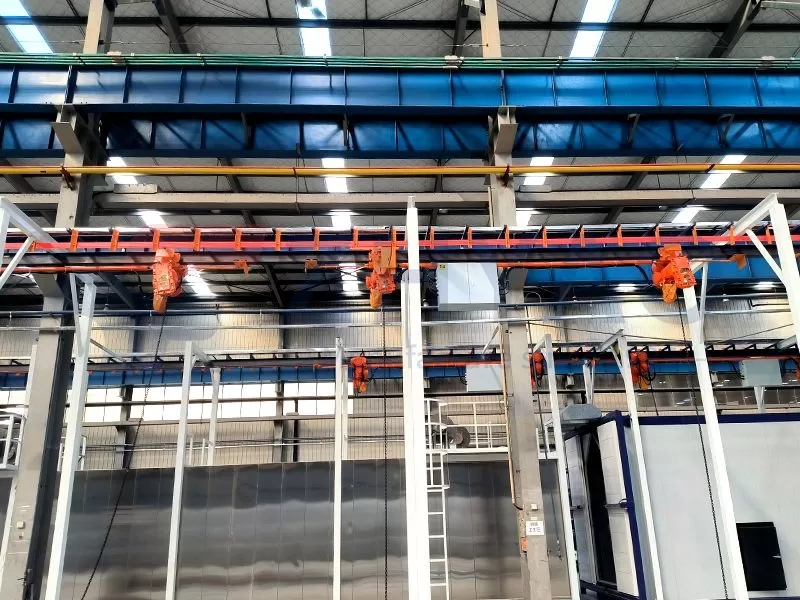

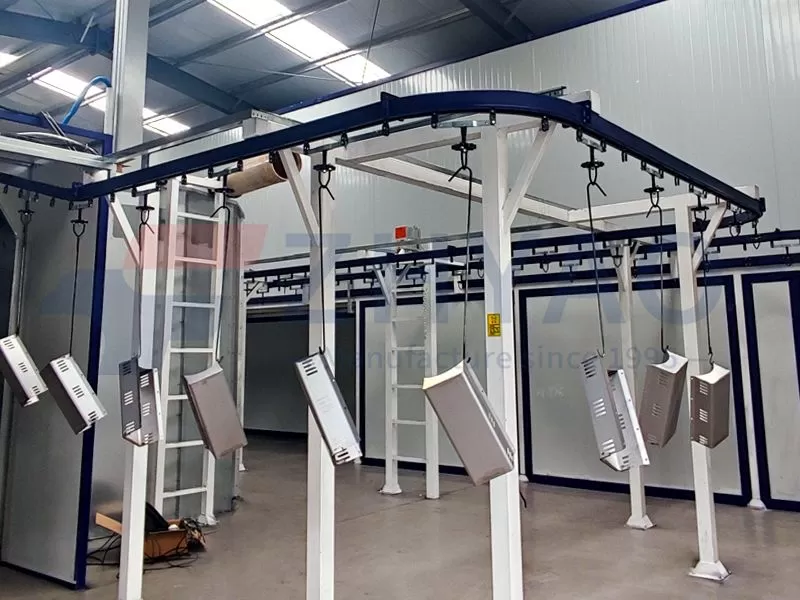

     ● Conveyor System: A conveyor system moves the parts through each stage of the wet painting line efficiently.

     ● Quality Control Stations: Throughout the wet painting line, quality control stations may be incorporated to inspect the painted parts for defects, thickness variations, color consistency, and adhesion.

     ● Environmental Controls: Wet painting lines often incorporate environmental controls to manage overspray, minimize paint waste, and ensure compliance with air quality regulations.

These components work together seamlessly to provide a complete wet painting solution, delivering high-quality paint finishes on various parts and substrates.

Industries We Serve

Our wet painting lines are utilized across various industries, including automotive, aerospace, furniture, appliances, and more. Whether you need to coat automotive components, aerospace parts, or furniture pieces, our wet painting lines deliver exceptional results.

Why Choose Us?

Expertise: With our team of skilled professionals and extensive industry experience, we have the expertise to deliver superior wet painting line solutions.

Quality Assurance: We are committed to maintaining the highest standards of quality and reliability in all our products and services.

Customer Satisfaction: Our priority is customer satisfaction, and we strive to exceed our clients' expectations by delivering top-notch solutions tailored to their needs.

Contact Us Today

Ready to enhance your production process with our wet painting lines? Contact us today to learn more about our services and discuss your project requirements. We look forward to partnering with you to achieve your coating goals.
