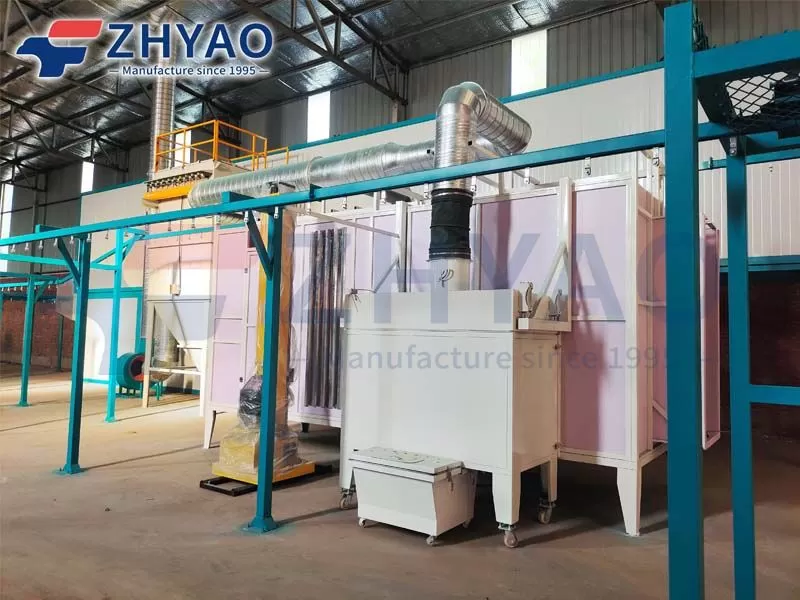

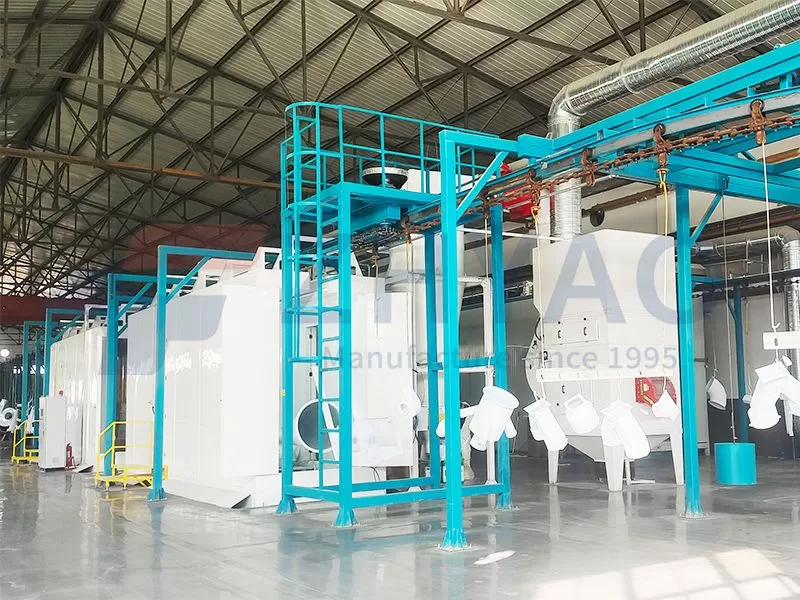

Fast Color Change Powder Coating Booth With Large Cyclone Recovery System
• Large Cyclone Recovery System
• Quick Color Change Within 10-15 Minutes
• 95%-98% Powder Recovery Efficiency
• No Dust Spillage, Minimal Powder Waste
• Easy To Clean Quickly, Reducing Downtime
• Using Well-Known Brand Components
• Efficient Separation And Recovery Of Powders
• Easy To Maintain And Replace Parts
Fast Color Change Powder Coating Booth With Large Cyclone Recovery System
Our powder coating booths are equipped with a Large Cyclone Secondary Recovery Device, which efficiently captures overspray powder and separates it from the airflow. This system ensures high recovery rates(95%-98%) and reduces powder wastage, resulting in cost savings and environmental benefits. And can change color in 10-15 mins. This system utilizes high-efficiency filters to capture overspray powder, ensuring clean air emissions and maintaining a safe working environment as well as cost-effectiveness.

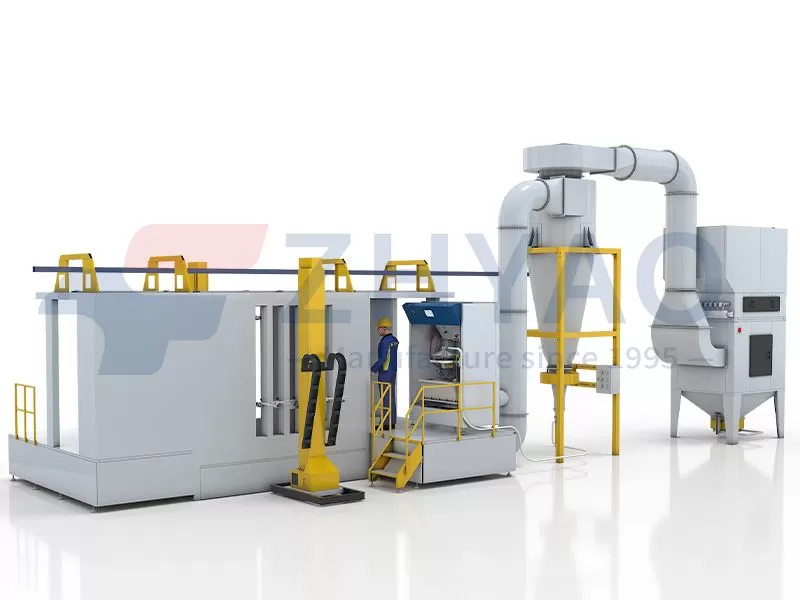

Working principle of large cyclone powder coating booth
● Spraying stage: Powder is sprayed evenly on the surface of the workpiece through the spray gun.
● Powder recovery: Unattached powder is sucked into the large cyclone recovery system by the fan.
● Cyclone separation: The large cyclone recovery system uses centrifugal force to separate powder from the air.
● Powder collection: The separated powder is collected and can be reused to ensure a high recovery rate.
● Air filtration: The filtered clean air is discharged to the outside to keep the working environment clean.
Working principle of powder coating booth

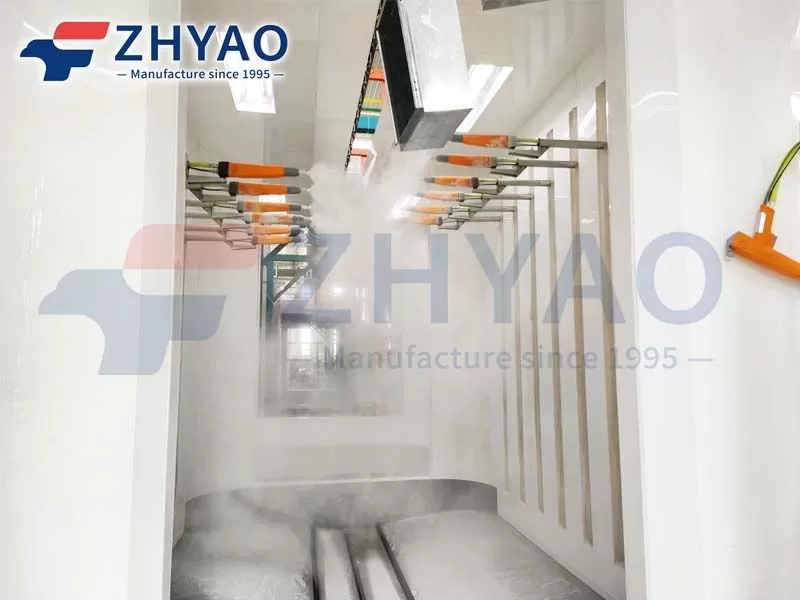

Spraying process: The electrostatic powder coating equipment is in the spraying room. The powder flies to the sprayed workpiece with static electricity under the action of air pressure. 30-40% of the powder is adsorbed on the surface of the workpiece to complete the coverage.
Recycling process: 60-70% of the powder in the air is recovered by the suction cyclone recovery machine. The powder rotates in the cyclone barrel and is separated under the action of centrifugal force. The dust falls into the bottom of the ash hopper and the air is discharged from the middle.
Filter element cleaning: The air in the powder spraying room is crushed by the filter element to form an outward airflow to prevent the powder from overflowing. The accumulation of powder on the surface of the filter element will cause blockage. The pulse cleaning system automatically cleans the powder on the surface of the filter element to ensure that the air duct is unobstructed and maintain the good effect of the recycling system.

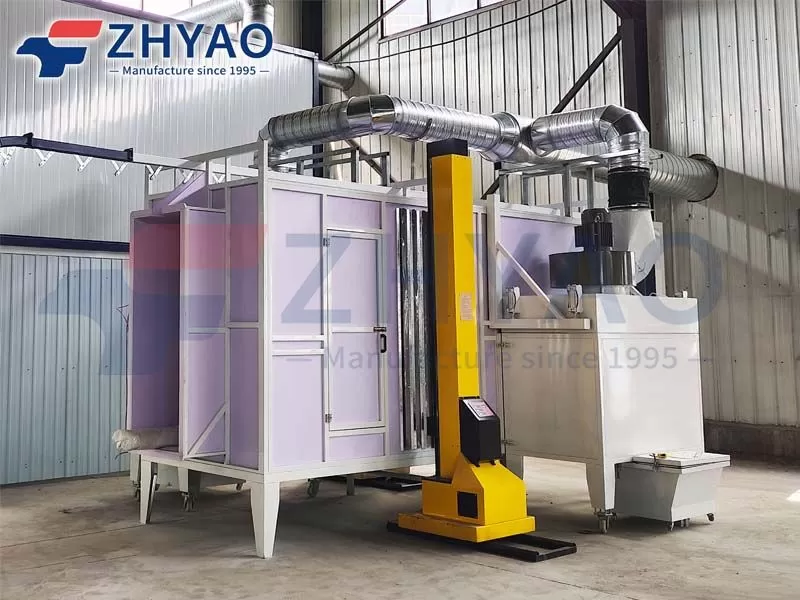

Manual Color Change Powder Coating Booth With Recovery Filter System
• With a Self-Cleaning Filter, No Dust Spillage.
• Colour-Changing Process (10-15 Minutes Manual Operation).
• Conveying Chain Speed Automatic Adjustment.
• Precision Stroke Control Application.
• Low Investment Costs, Easy To Maintain.
• Simple Operation, Safe And Durable.
• Outstanding Appearance, Fine Workmanship.
• Save Labour And Improve Efficiency.

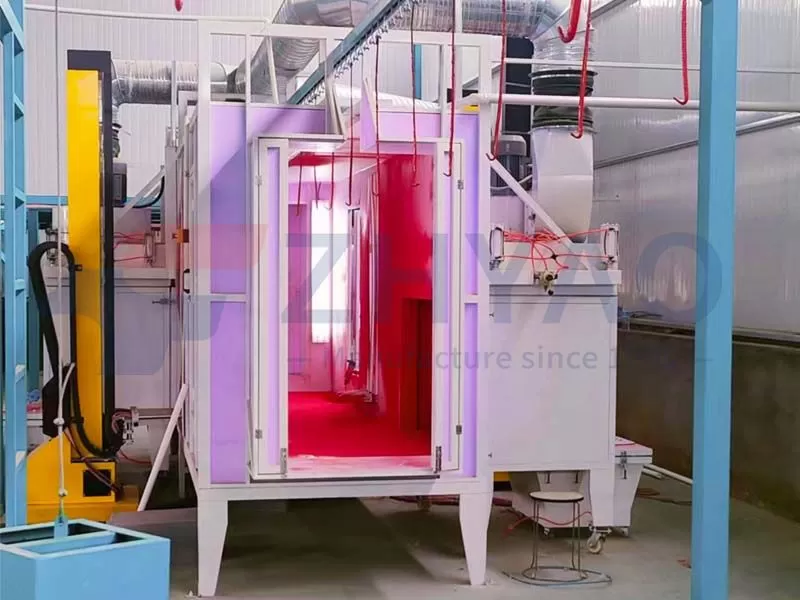

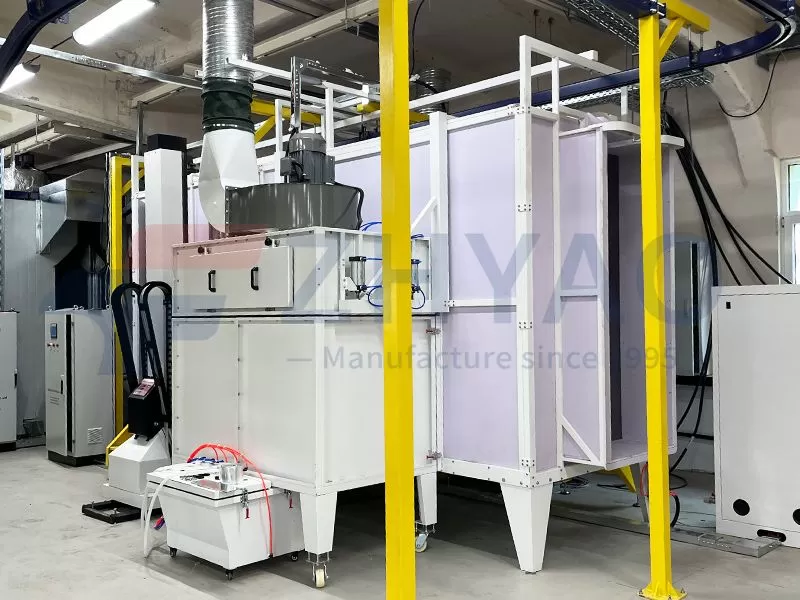

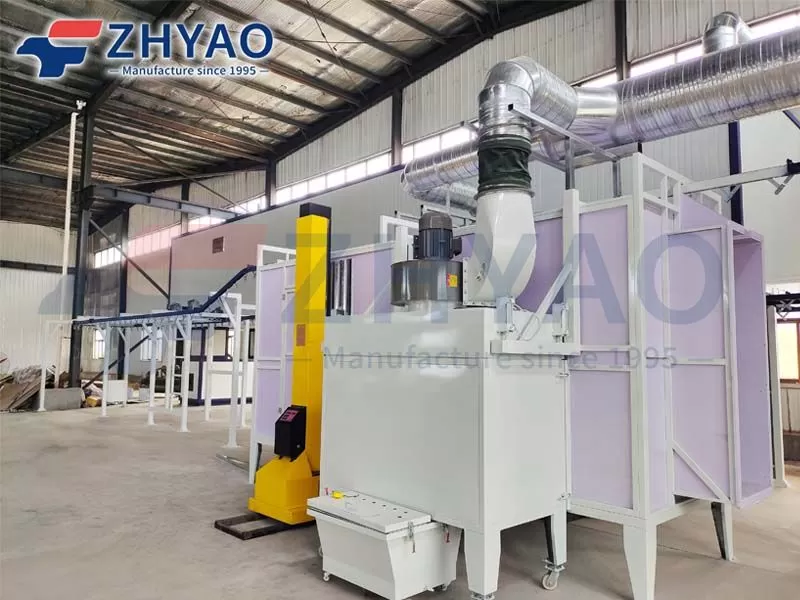

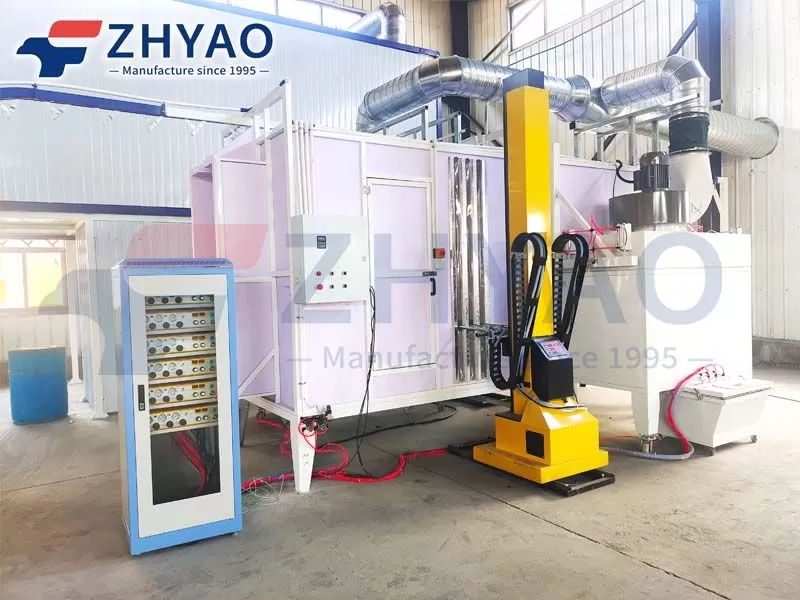

Manual Color Change Powder Coating Booth With Recovery Filter System
In a powder coating booth equipped with a cartridge recovery system, a suction fan sucks the powder particles out of the air and the cartridge filter captures them. Low investment costs are one of the main advantages of the manual color change powder coating booth with recovery filter system.
Specifications：
● Brand: Zhyao
● Length: From 1 to 10 m (According to customer requirements)
● Height: From 1.5 to 10 m (According to customer requirements)
● Width: From 1 to 10 m (According to customer requirements)
● Filter type: With a self-cleaning filter (cartridge recovery system)
● Type: Manual
● Design: Quick-color-change or ordinary (According to customer requirements)
Working Principle
When operating the powder spraying room, the floating powder that is not adsorbed on the workpiece to be coated is sucked by the exhaust fan together with the indoor air, and flows to the filter element opposite the operation port. After being filtered by the filter element made of filter materials such as parchment paper, the powder is trapped in the room, and the air is discharged to the outside through the filter element. In this way, when the filter element is back-blown with compressed air at a fixed time, the powder on the surface of the filter element falls into the collection box at the bottom of the room and can be recycled and reused. The continuous exhaust not only maintains the negative pressure in the room, the powder cannot overflow, but also ensures that the dust concentration in the room does not exceed the explosion limit.
The advantages of this recovery configuration are compact structure and small footprint. Since there is no need for connecting pipes, maintenance and cleaning are very convenient, and the equipment investment is relatively small.

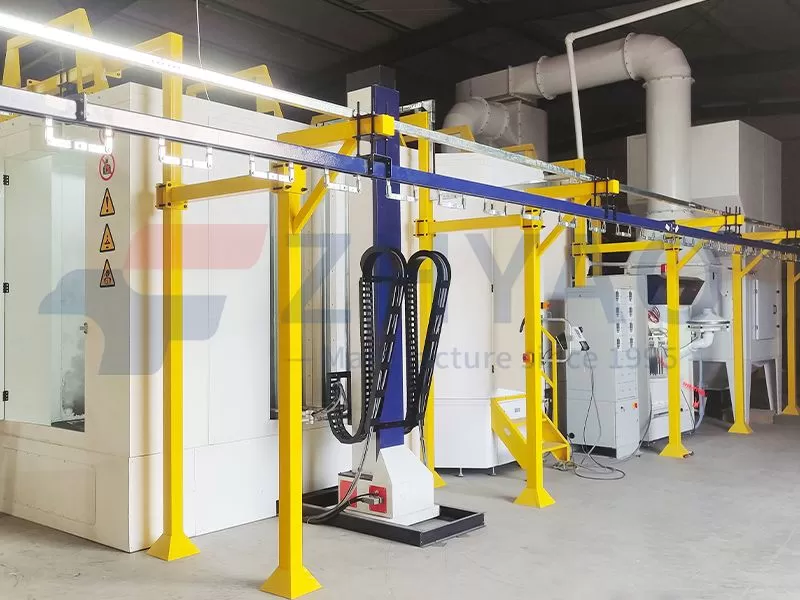

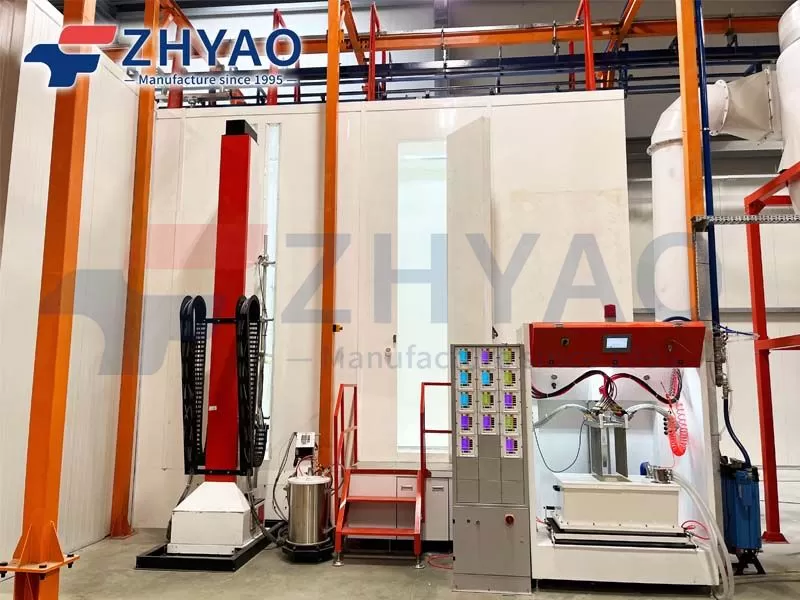

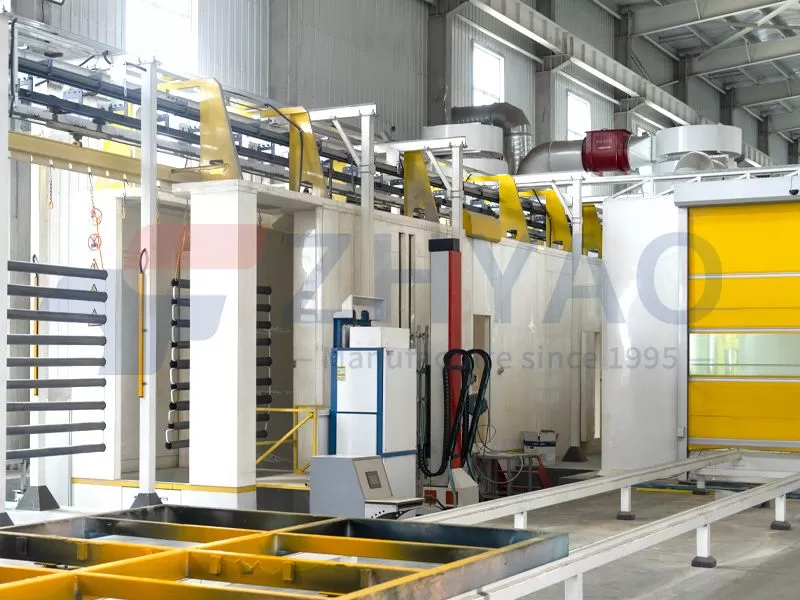

Design and produce automatic coating production lines according to customers’requirements
We are developing, producing and selling high quality and customized turnkey solutions for surface treatment lines.
We will produce automatic coating lines in any configuration to solve our customers' business tasks.
Powder Coating Booth Material Options
We offer powder coating booths in two main material options: Polypropylene (PP) and Polyvinyl Chloride (PVC). These materials are chosen for their durability, chemical resistance, and ease of maintenance, providing long-lasting performance in harsh industrial environments.
Polypropylene (PP): Our PP powder coating booths are known for their exceptional strength and resistance to corrosion, making them ideal for demanding applications. PP booths offer excellent chemical resistance and are easy to clean, ensuring a pristine coating environment for optimal results.
Polyvinyl Chloride (PVC): Our PVC powder coating booths are renowned for their versatility and cost-effectiveness. PVC booths provide reliable performance in a wide range of coating applications and offer excellent resistance to abrasion and impact. They are lightweight and easy to install, making them a popular choice for various industries.
