Features：

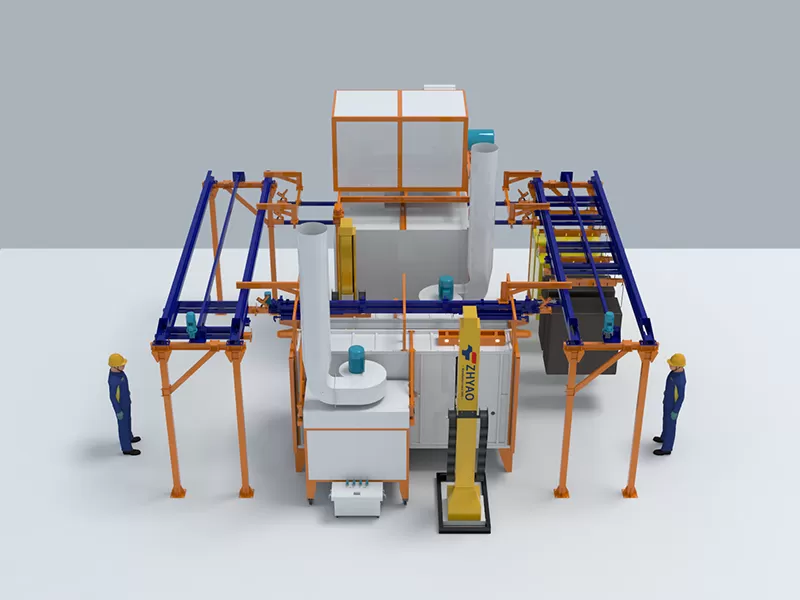

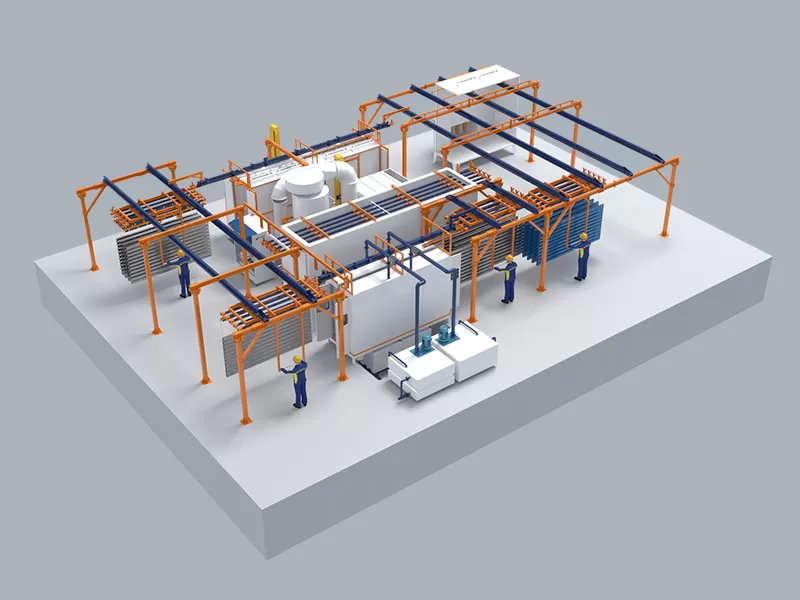

1. This set of powder coating line is designed for the spraying process of large hot-rolled workpieces (workpieces mainly cut and welded of structural steel profiles).

2. The pre-treatment adopts automatic shot blasting. The shot blasting equipment is manufactured by a Chinese company that our company has cooperated with for many years. It has excellent performance in shot blasting effect, low equipment failure rate and continuous operation durability.

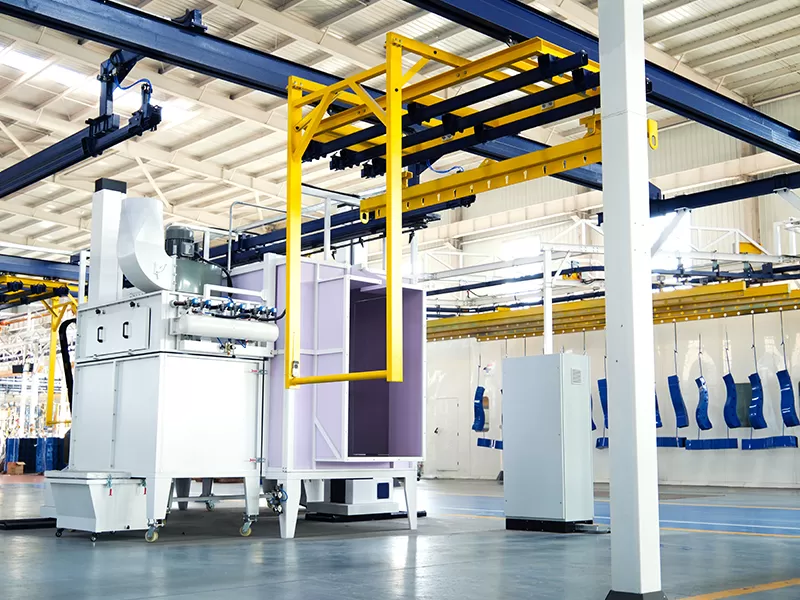

3. In terms of painting, since the user's products only have two or three colors, we have designed a more economical spraying system for the customer. The powder room uses a PVC structure to effectively prevent the accumulation of powder inside the powder room. For long-term continuous spraying It has the good effect of eliminating the need to clean the powder room.

4. The oven adopts a box structure and is equipped with an air curtain at the entrance and exit of the workpiece and an automatic door to more effectively reduce heat loss.

5. The entire conveying system adopts accumulation conveyor to ensure that the workpieces in each process section stop and move at the same time under the process requirements.
