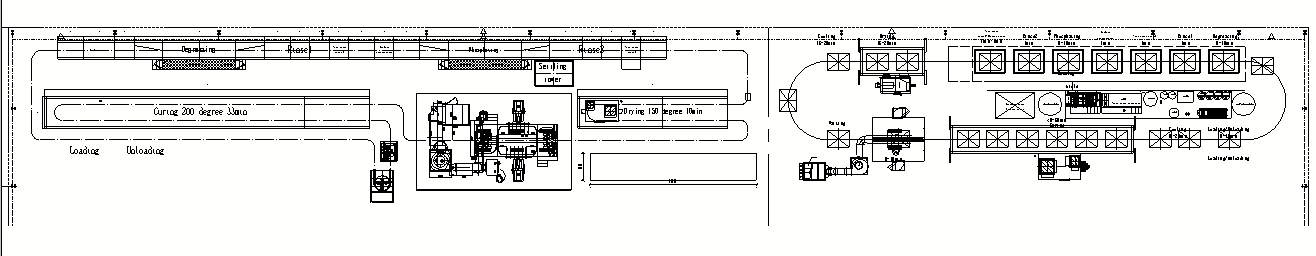

Due To The Large Differences In The Size And Weight Of User Workpieces, This Set Of Equipment Plans Is Designed With Two Sets Of Coating Lines. One Part Is a Small-Piece Coating Line And The Other Part Is a Large-Piece Coating Line.
Process Flow: Loading--Spray Pre-Treatment--Drying--Automatic Powder Spraying (Robot)--Curing--Cooling--Unloading
Process Flow: Loading --Pretreatment (Immersion Tank)--Drying--Powder Coating --Curing--Cooling--Unloading
Share:
Features：
1. Workpiece Name: Rim 2. Maximum Size: 617*315 (mm) 3. Area Size: 57m*14m 4. Heating Method: Natural Gas 5. Conveying Specifications: Xt100 Type 6. Conveying Length: 215 Meters | 1. Workpiece Name: Rim 2. Maximum Size: 1685*1310 (mm) 3. Area Size: 40m*12m 4. Heating Method: Natural Gas 5. Conveying Specifications: 1t Type Chain-Changing Electric Hoist 6. Conveying Length: 84 Meters |
1. The small parts coating line uses the XT100 conveyor to handle the coating of products under 100 kg. The large parts coating line uses the electric chain hoist conveying process, specifically for coating large workpieces within 1T.
2. Since most small parts account for more than 95% of all users' products, and small parts are highly standardized but have relatively complex shapes, robot spraying is used to replace manual work.
