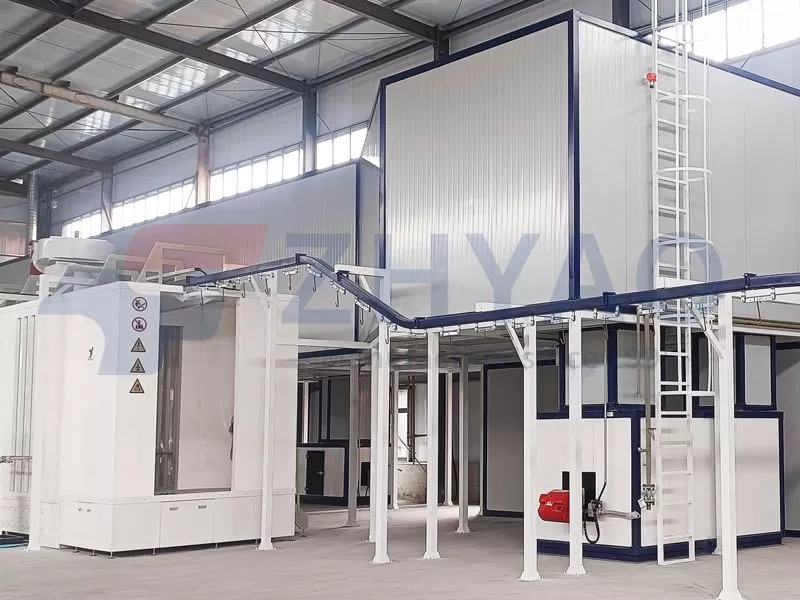

Process Flow:Loading -- preheat -- Automatic Powder Spraying -- Curing -- Cooling -- Unloading
1. Workpiece Name: rolls、brackets
2. Maximum Size: L3000*W800*H1800 (mm)
3. Area Size: 43m*14m
4. Heating Method: Natural Gas
5. Conveying Specifications: Qxg300 Type
6. Conveying Length: 204 Meters
Share:
Features:

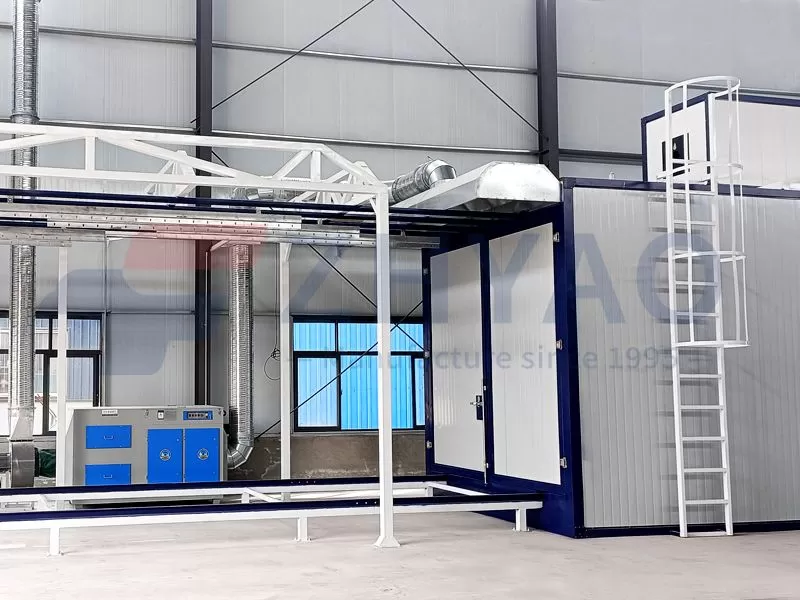

1. This line is a coating process with two coating applications and two curings. The base powder is sprayed for the first time and then quickly cured with an infrared oven. After curing, the second spraying is performed immediately and then enters the second hot air curing furnace for complete curing.

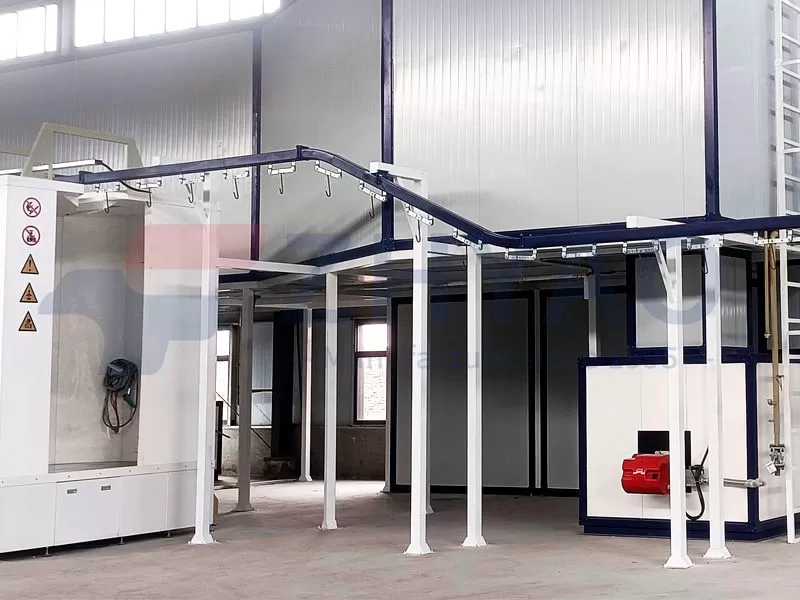

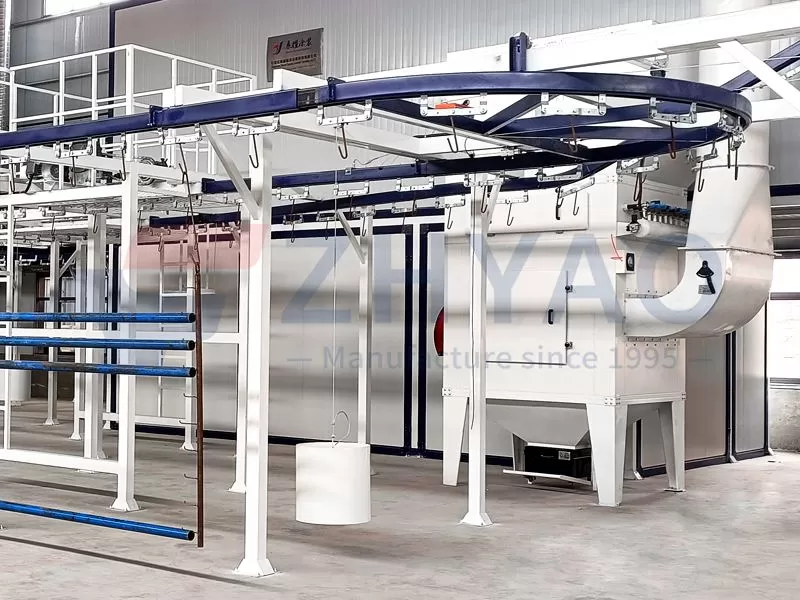

2. The pre-processing of this line is not in the conveying system, so the entire line occupies a small area. Since the workpiece is not too large, the QXG250 conventional C-type chain is used as the conveying system.

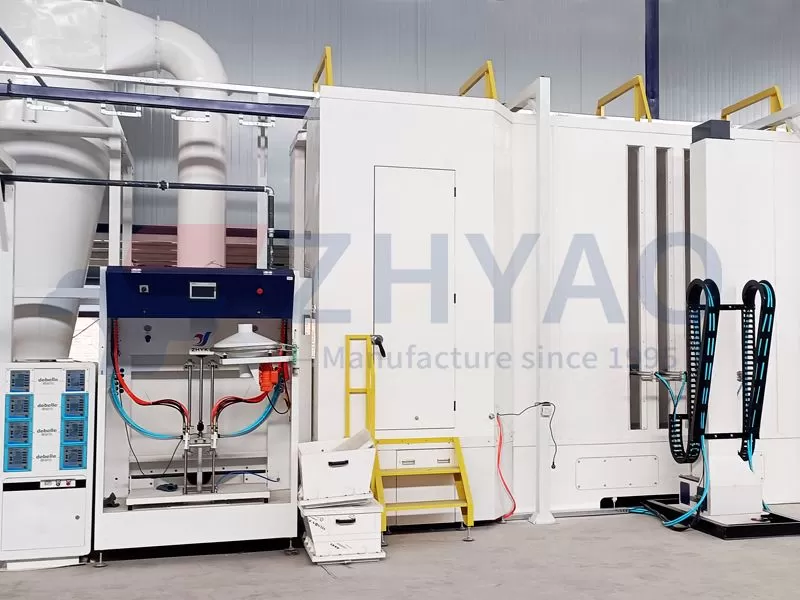

3. Both the first coating application and the second coating application of this line adopt the PP Big Cyclone Magic quick color change system, which meets the needs of users with many colors of products that need to be changed frequently. Due to the complexity of the workpiece, the two sets of spray systems are in the automatic station. Manual filling positions are designed at the front and rear respectively, so that users can implement front filling or backfilling according to different workpiece characteristics, thus ensuring the final spraying effect of the workpiece.

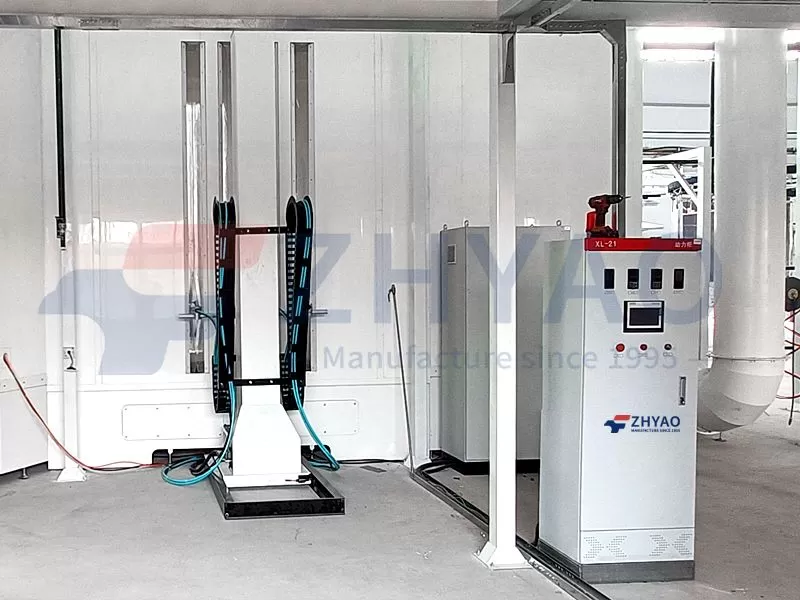

4. The spray gun adopts the Swiss Gema spray gun, which has a good powdering effect on the inner corners and can better guarantee the quality of the sprayed surface.
